Speed Ramp (50mm)

The AUTOPA Speed Ramp 50 is designed to slow traffic to approximately 10mph.

Manufactured from recycled plastic, solid black or painted high visibility yellow. This speed ramp is suitable for wide variety of vehicle types, including heavy goods vehicles with pneumatic tyres up to 40 tonnes. The combination of high contrast black and yellow sections with high visibility reflectors guarantee that the ramp can be seen in even the worst conditions.

The AUTOPA Speed Ramps are fully modular and created from a variety of sections, each are sold separately allowing for any length of speed ramp. All shoulders and inners are available in black or yellow and the chart below will determine the correct number of each required for your site.

FEATURES

• Made from recycled PVC.
• Each segment includes white reflectors which provide excellent night and bad weather visibility.
• Both ends and inners are available in black and yellow.
• Segments are sold separately to accommodate any road width.
• All bolts, fixings and reflectors are included with the ramp segments (bolts supplied are recommended for concrete fixing).
• Also suitable for HGV's up to 40 tonnes.
• Not suitable for solid tyred vehicles such as solid tyred folk lift trucks.

SPECIFICATIONS

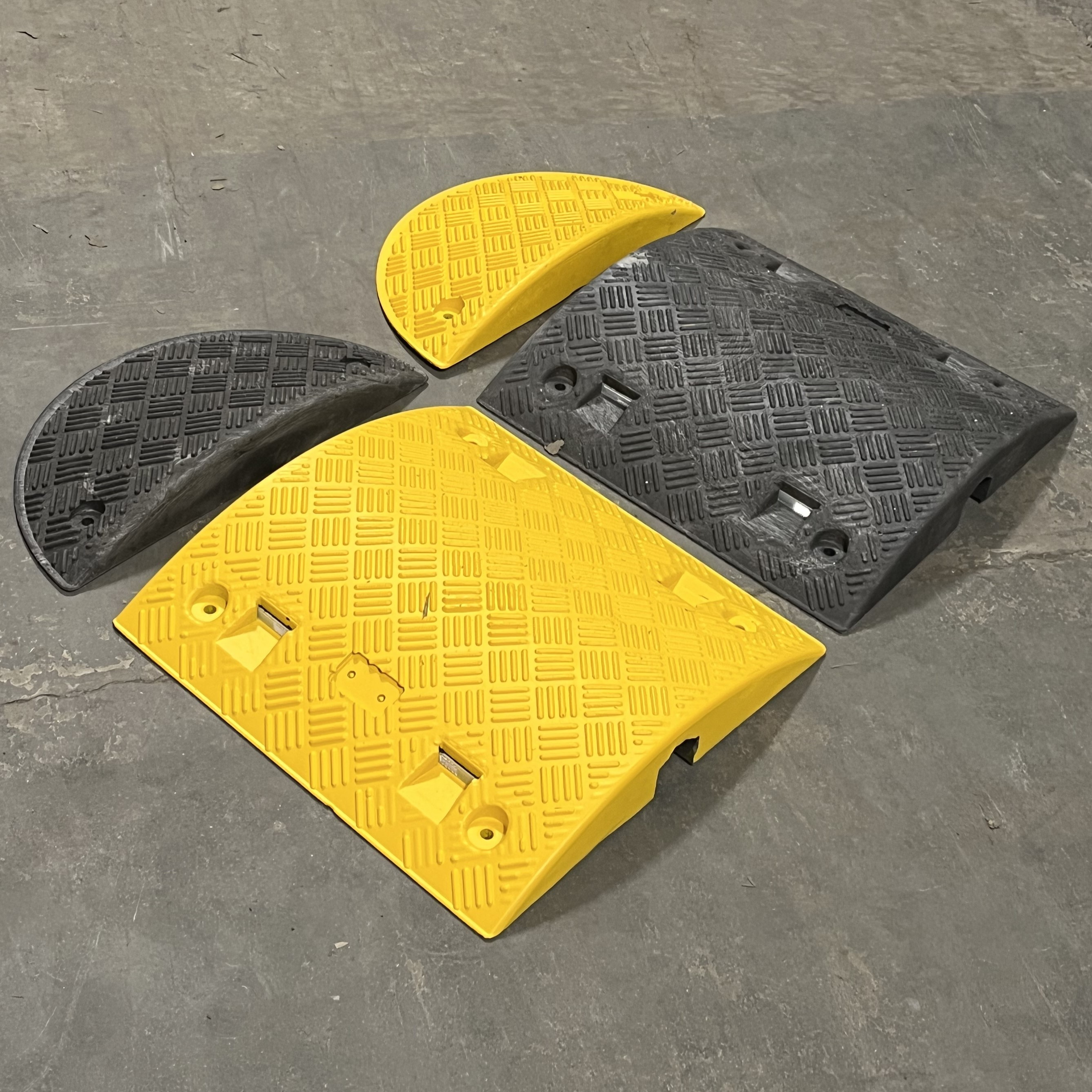

Inner section

• Length 500mm
• Width 420mm
• Height 50mm

Shoulder section

• Length 210mm
• Width 420mm
• Height 50mm

ADDITIONAL INFORMATION

• 50mm high ramps slow traffic to 10mph.
• Warning signs should be used to alert road users.
• Due to variable specifications of vehicle designs some "grounding" of vehicles on ramps may occasionally occur.
